Air Conditioning relays

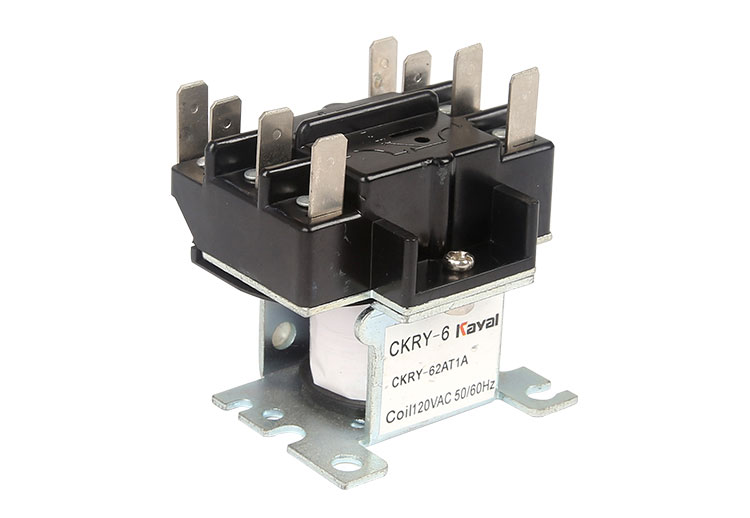

General Purpose Switching Relay
◇SPNO,SPDT,DPNP&SPDT switching configurations
◇Class B insulation system
◇250" QC terminals
◇Multi-positional mounting

Partial Listing of Available CKYR-6 Relays

Coil Voltage 24VAC 120VAC 208/240VAC
SPNO CKYR-61AQ1A CKYR-61AT1A CKYR-61AU1A
SPDT CKYR-61CQ1A CKYR-61CT1A CKYR-61CU1A
DPNO CKYR-62AQ1A CKYR-62AT1A CKYR-62AU1A
DPDT CKYR-62CQ1A CKYR-62CT1A CKYR-62CU1A

Nomenclature

CKYR-6  - 6 2A Q 1 A 0
Series Packaging Relay Type Pole Form Coil Voltage Contact Rating Mounting Customer Identification
Relay  - Factory Bulk Box 6 2A DPNO Q 24VAC 1 Power Rated A-Bracket
 - Individual Pack Box   2C DPDT T 120VAC 2 Pilot Duty Mounting with 250"QC
  1C SPDT U 208/240 VAC
1A SPNO V 277VAC

Contact Data

Arrangement SPNO,SPDT,1NO&1NC
Contact Material Silver Cadmium Oxide Alloy
Power Rating 12FLA 60 LRA
18 Amps Resistive @ 125VAC 8FLA 48 LRA
18 Amps Resistive @ 240/277 AC
SPST-NO only Pilot Duty Rating 25 Amps Resistive @ 277VAC
3Amps,277VAC
125VA @ 125VAC
250VA @ 250VAC
277VA @ 277VAC
Temperature Range  -55 to +125℃
Unit Weight 0.086kg
Power Pole Termiinations 250" QC
Coil Termination 250" QC
Mechanical Life Expectancy 1 million operations
Electrical Life Expectancy 250,000 operations-resistive
100,000 operations-inductive
Coil Nominal Coil Power AC 9.5VA

Coil Voltage / Relay Performance

Coil ID Letter Nominal Coil Voltage VAC Pick Up Voltage VAC Drop Out Voltage VAC Maximum Coil Voltage VAC Norminal Coil Resistance Ohms Sealed VA (maximum) Inrush VA
Q 24 20.4 4.8 26.4 15 9.5 21.5
T 120 102 24 132 400 9.5 21.5
U 208/240 176 48 264 1600 9.5 21.5

relay switch for central air conditioner

Dimensions(Inches)
