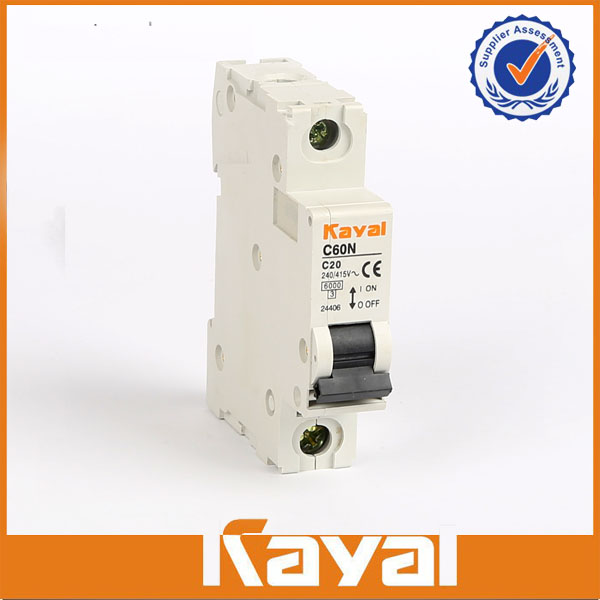

C60N Mini Circuit Breaker 1 Pole
CONSTRUCTION AND FEATURE
.Capable of switch electric circuit with load
.Capable of quickly releasing stored energy operation
.Adaptable to padlock device
.Contact position indication
.High short-circuit current withstand capacity
.High lighted of high making and breaking capacity
.Used as main switch for household and similar installation
TECHNICAL DATA
.Pole NO.:1,2,3,4
.Rated Current(A):1,2,3,4,6,10,16,20,25,32,40,50,63
.Rated frequency: 50/60Hz
.Rated voltage: 230/400V AC
.Rated withstand current: 1000A Within lesc
.Electro-mechanical endurance: 1000 Cycles
.Rated short-circuit making capacity: 10000A
.Connection Capacity: Rigid conductor 25mm2
.Connection Terminal:
.Screw terminal
.Pillar terminal with lamp
.Installation:
.Panel mounting
OVERALL & INSTALLATION DIMENSIONS
| Standard | IEC/EN 60898-1 | ||
| Mechanical features |
Electrical life | 4000 | |
| Mechanical life | 10000 | ||
| Protection degree | IP20 | ||
| Reference temperature for setting of thermal element |
℃ | 30 | |
| Ambient temperature(with daily average≦35℃ |
℃ | -5..+40 | |
| Storage temperation | ℃ | ||
| Installation | Terminal connection type | Cable//U-type busbar/pin-type busbar | |
| Terminal size top/bottom for cable | mm2 | 25 | |
| AWG | 18-3 | ||
| Terminal size top/bottom for busbar | mm2 | 25 | |
| mm2 | 18-3 | ||
| Tightening torque | N*m | 2 | |
| In-Ibs. | 18 | ||
| Mounting | On DN rail EN 60715(35mm)by meas of fast clip device | ||
| Connection | From top and bottom |
| Rated current In (A) |
Temperature compensation coefficient under various operational temperature | ||||||||
| -10℃ | 0℃ | 10℃ | 20℃ | 30℃ | 40℃ | 50℃ | 55℃ | 60℃ | |
| 6 | 1.2 | 1.14 | 1.09 | 1.05 | 1.00 | 0.96 | 0.8 | 0.75 | 0.7 |
| 10-32 | 1.18 | 1.12 | 1.08 | 1.04 | 100 | 0.96 | 0.92 | 0.88 | 0.84 |
| 40 | 1.16 | 1.12 | 1.07 | 1.03 | 1.00 | 0.97 | 0.87 | 0.83 | 0.80 |
| Standard | IEC/EN 60898-1 | ||
| Electrical features |
Rated current In | A | 6,10,16,20,25,32,40,50,63 |
| poles | 1P,2P,3P,4P | ||
| Rated voltage Ue | V | 230/400 | |
| Insulation voltage Ui | V | 500 | |
| Rated frequency | Hz | 50/60Hz | |
| Rated breaking capacity | KA | 6000 | |
| Rated impelse withstand voltage(1.2/50)UimpStandard | V | 4000 | |
| Dielectric test voltage at ind,Fred,for 1 min | KV | 2 | |
| Polluttion degree | 2 | ||
| Themo-magnetic release characteristis | B,C |
