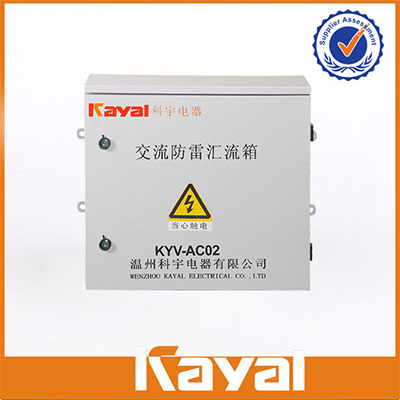

For large PV power generation system,In order to reduce the grid connection between the grid-connected inverter and the cabinet, it is convenient to maintain and improve the reliability. It is necessary to add a DC bus between the PV grid-connected inverter and the cabinet. PV AC lightning protection combiner box series products of the company is specially designed to meet this requirement,Can be composed of PV inverter products matching with complete PV system solutions.Using Ac combiner box,the user can according to the AC power cabinet rated input current and voltage, the output of a certain number of grid connected inverter by lightning protection device and circuit breaker for confluence, convenient access level power cabinet.
Technical data
| Number | Parameter name | |
| 1 | Size(MM) | |
| 2 | Rated input voltage(V) | |
| 3 | Rated insulation voltage (V) | |
| 4 | Rated frequency（Hz） | |
| 5 | Busbar rated current(A) | Horizontal bus |
| 6 | Rated short-time withstand | Horizontal bus |
| current effective value Icw(1 sec)(kA) | ||
| 7 | Rated short-time withstand | Horizontal bus |
| current maximum value Ipk(kA) | ||
| 8 | Power frequency withstand voltage for 1 minutes(V) | |
| 9 | Temperature rise： | |
| Conforms to IEC 947-1 for temperature rise,and | ||
| the temperature rise does not exceed the corresponding | ||
| standard requirements of the component. | ||
| 10 | Input switch | |
| 11 | Output switch | |
| 13 | Protection level | |
| 14 | Lightning protection level | |
| 16 | Fire-proof level | |
| 17 | Environmental requirements |

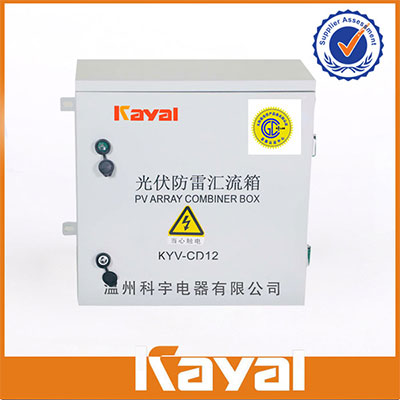

PV Array Lightning Protection Combiner Box KYV-CD12
Description:
For large-scale PV grid-connected power generation system, in order to reduce the connection between the PV module and the inverter, and to facilitate maintenance to improve reliability,it generally need to add DC busbar device between the PV module and the inverter. Our company's PV array lightning protection combiner box is designed to meet this requirement and can be designed to a complete PV power generation system solution with PV inverter products. Using PV combiner box, the user can put certain number of same specifications PV modules into series PV module according to input DC voltage range of the inverter, and then a number of series PV modules access to the PV array lightning protection box.It’s convenient to facilitate the post-inverter through the output for lightning protection device and circuit breaker.
The PV array lightning protection box has the following characteristics：
(1) meet the requirements of outdoor installation, protection class IP65, with anti-UV, anti-acid, anti-alkali, moisture, mildew, rodent control and other functions；
(2) access 16-way PV array, each with 15A, 1000Vdc fuse (replaceable other grades）；
(3) Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode ；
(4) Positive, negative string into the fuse；
(5) Use quadruple PV dedicated circuit breaker with positive and negative in series;

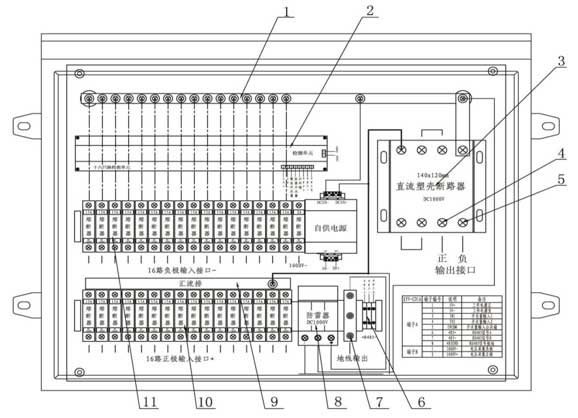

Basic Structure
